Torx Drive Concrete Screws
Torx Drive Concrete Screws , material by Steel C1022A, Zinc Plated, Size 7.5, Length from 32mm-212mm from China Concrete Screws Manufacturer
 |
 |
Torx Drive Concrete Screws, Flat Head with Nibs torx 30 drive
Head Type: CSK
Material: Steel C1022A
Surface: Zinc Plated
Size: 7.5×32mm – 7.5×212mm

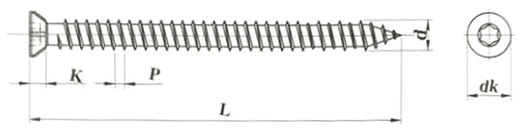

| Description | Size | d | dk | k | P |
| Torx Drive Concrete Screw | 7.5x32mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x42mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x52mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x62mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x72mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x82mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x92mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x102mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x112mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x122mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x132mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x142mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x152mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x162mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x172mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x182mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x192mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x202mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x212mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x222mm | 7.5 | 11 | 3.4 | 2.6 |
| Torx Drive Concrete Screw | 7.5x232mm | 7.5 | 11 | 3.4 | 2.6 |
