Slider T-Nut
Slider T-Nut , T-slider Nut made of steel for aluminum profile , European style 20/30/40/45 ,Size M3-M8 from China Slider T-nut Manufacturer.
 |
 |
Slider T-Nut, T-sliderNut
made of steel , Zinc plated
Size: M3-M8

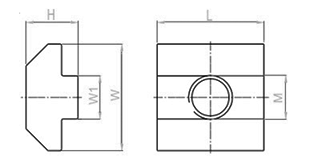

| Type | Size（M） | Length | Thickness | Width | Pitch |
| 20 | M4 M5 M6 M8 | 10 | <5 | 10 | 0.7 |
| 20 | M4 M5 M6 M8 | 10 | 5 | 10 | 0.8 |
| 30 | M4 M5 M6 M8 | 16 | 6 | 16 | 0.8 |
| 30 | M4 M5 M6 M8 | 16 | 6 | 16 | 1.0 |
| 40 | M4 M5 M6 M8 | 19.5 | 9.5 | 19.5 | 1.0 |
| 40 | M4 M5 M6 M8 | 19.5 | 9.5 | 19.5 | 1.25 |
